5 Axis CNC Machined Parts

Project Overview:

Manufacturing Process: 5 Axis CNC Machining
Machining Tolerance: ± 0.02 mm
Max. Machining Size: 500 × 280 × 260 mm
Lead Time and MOQ: Usually 7 Days, 1 Piece
Demonstration Material: Titanium Alloy TI6AL4V

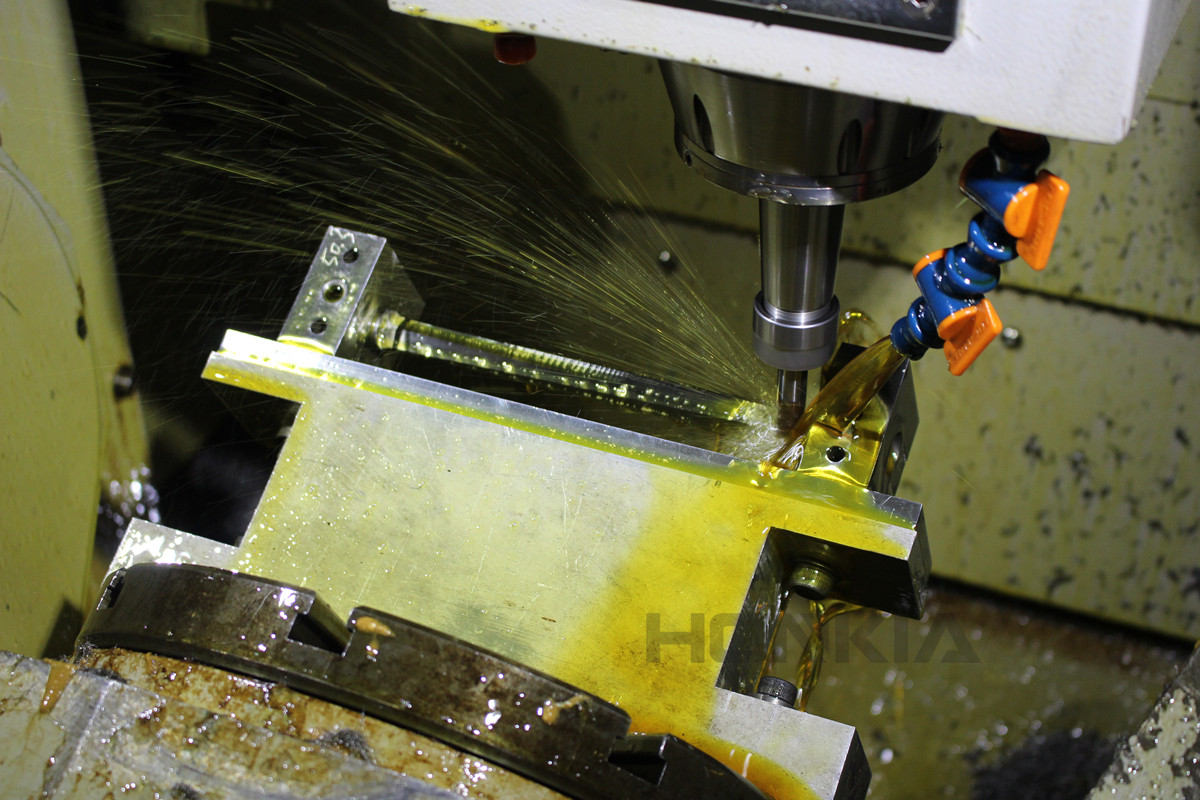

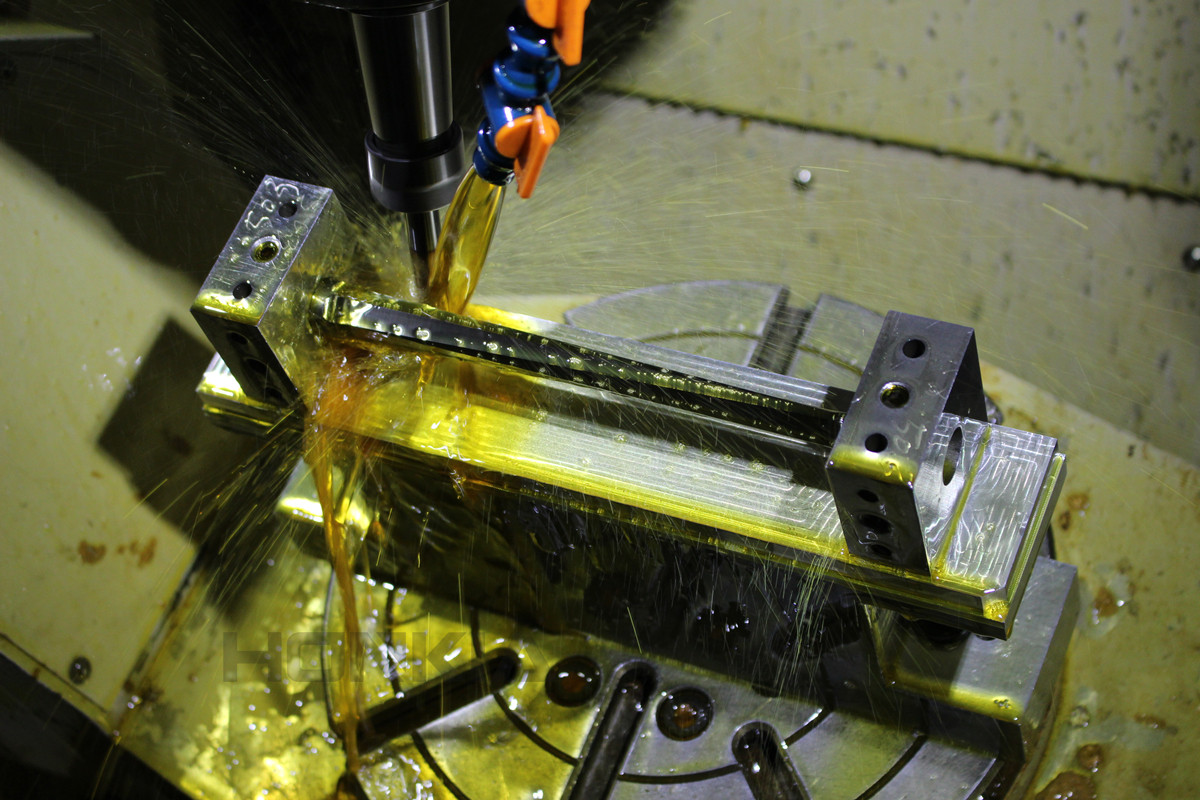

5 Axis CNC was a high efficient milling process that the cutting tool moved across X, Y, Z linear axes and simultaneously rotated around A and B axes, it milled up to 5 sides (usually 6 sides a part) in a single setup.

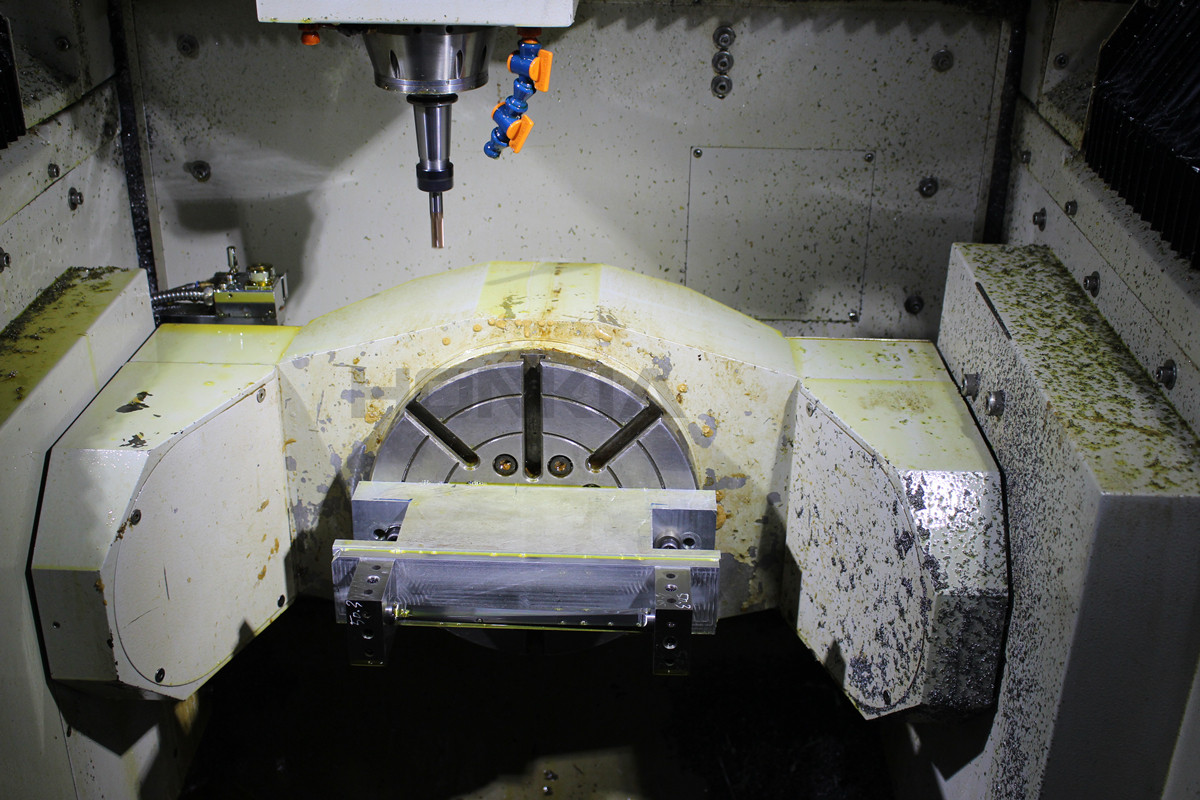

5 Axis CNC MachiningLess jigs and fixtures. 5 axis CNC eliminated the most assistance of jigs and fixtures that were usually must used by 3 axis CNC milling.

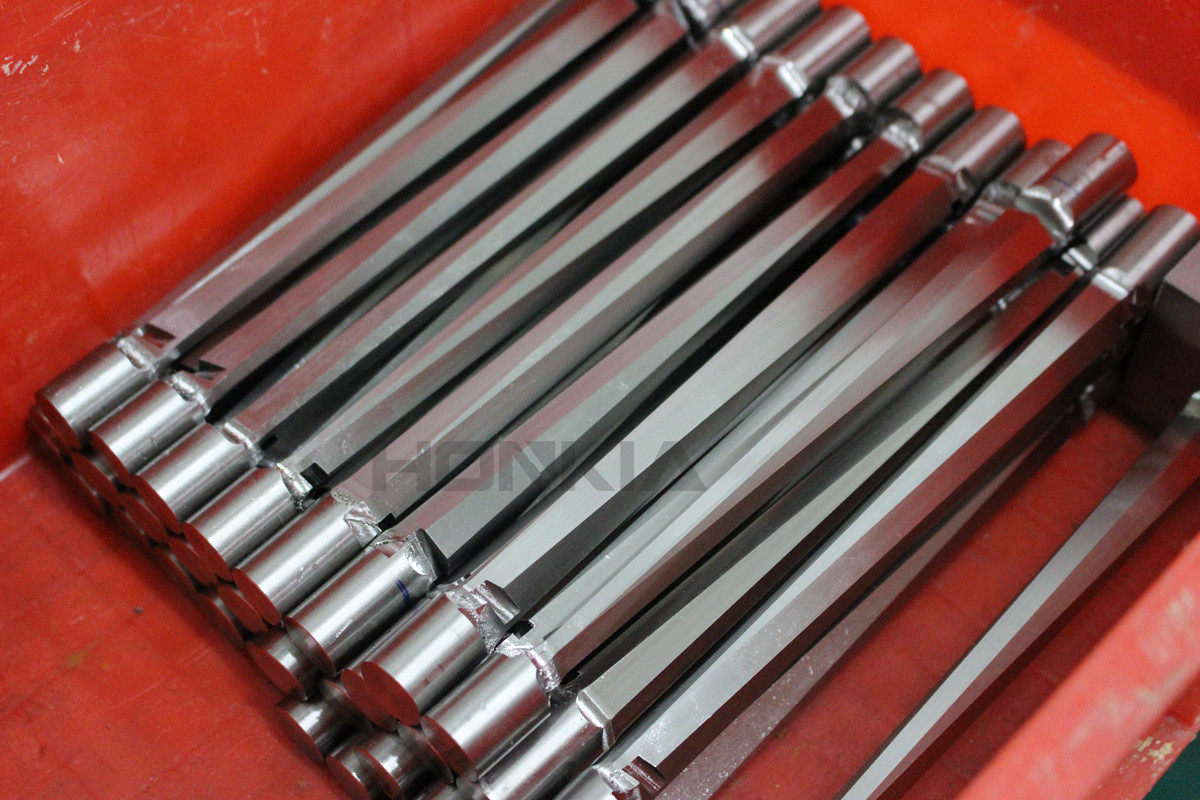

5 axis milled titanium parts 2Longer cutting tools life. 5 axis CNC used longer effective cutting edge and less cutting force, which helped increase the cutting tools life.
5 axis milled titanium parts 45 axis CNC had short end mill and less cutting force, which reduced cutting tool deflection and get tight milling tolerance and smooth milled surface.

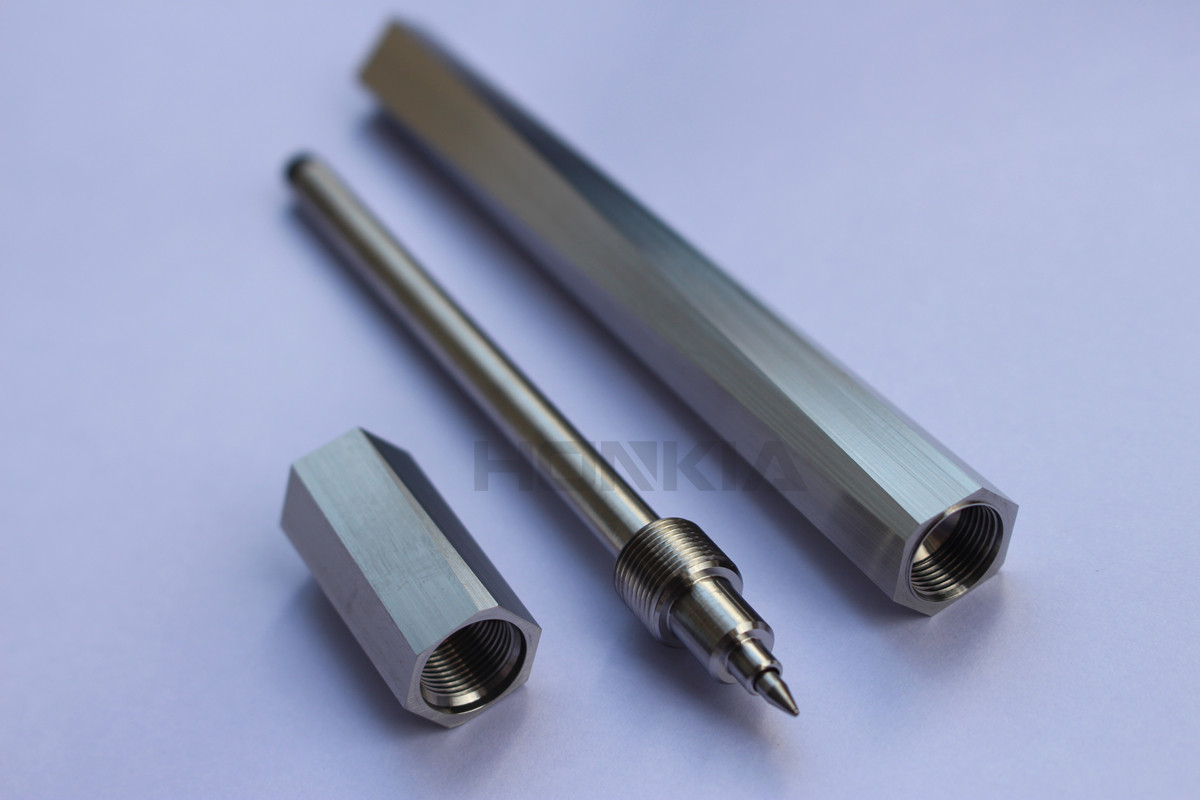

5 axis milled titanium parts 8Fast material removal, less manual setups and fixtures assistance, had 5 axis CNC milled parts in fast delivery and good appearance.
